Shuttle Barebone PC

IMG Model CPU Chipset LAN/USB COM/SATA DISPLAY Expansion
Shuttle
DH610		 i3/i5/i7/i9
Pentium
Celeron		 H610 2 * LAN
2 * USB2.0(F)
2 * USB 3.2 Gen1(F)
2 * USB2.0(R)
2 * USB 3.2 Gen1(R)		 - 1 * HDMI
2 * DP		 M.2 2280 Type M key socket
M.2 2230 Type E key socket
Shuttle
XH610/
XH610V		 Intel 12th
i3/i5/i7/i9
Pentium
Celeron		 H610 2 * LAN
2 * USB2.0(F)
2 * USB 3.2 Gen1(F)
2 * USB2.0(R)
2 * USB 3.2 Gen1(R)		 - 1 * HDMI
1 * DP		 M.2 2280 Type M key socket
M.2 2230 Type E key socket
Shuttle
XH510G		 i3/i5/i7/i9
Pentium
Celeron		 H510 1 * LAN
2 * USB2.0(F)
2 * USB 3.2 Gen1(F)
2 * USB2.0(R)
2 * USB 3.2 Gen1(R)		 - 1 * HDMI
2 * DP		 M.2 2280 Type M key socket
M.2 2230 Type A,E Key socket
PCI-E X16
Shuttle
P21WL01		 8th Gen
i3/i5/i7/
Celeron		 - 2 * Gigabit LAN
4 * USB 3.2 Gen1		 - - -
Shuttle
BPCWL03		 8th Gen
i3/i5/i7/
Celeron		 Intel UHD Graphics 2 * Gigabit LAN
4 * USB 3.2 Gen1
4 * USB2.0		 - 2 * HDMI
2 * DP		 -
Shuttle
X50V8		 Celeron 5205U
i3-10110U		 - 1 * LAN
2 * USB2.0(R)
2 * USB3.2(R)
2 * USB 3.2 Gen1(L)		 - -
2 * USB 3.2 Gen1(L)M.2 2280 Type B,M key socket
M.2 2230 Type A,E key socket
Shuttle
NS02 V2		 - - 1 * Gigabit LAN
2 * USB2.0(F)
2 * USB2.0(R)		 - - PHD5 2.5
Shuttle
DH670		 i3/i5/i7/i9
Pentium
Celeron		 Intel H670 2 * Gigabit LAN
2 * USB 3.2 Gen1(F)
2 * USB 3.2 Gen2(F)
2 * USB 3.2 Gen1(R)
2 * USB 3.2 Gen2(R)		 - 2 * HDMI
2 * DP		 1 * M.2 2280 Type M
1 * M.2 2230 Type E
Shuttle
XH510G2		 Intel 10th/11th LGA1200
Core i3/i5/i7/i9
Pentium, Celeron
65W processor		 Intel H510 1 * Gigabit LAN
2 * USB 2.0(F)
2 * USB 3.2 Gen1(F)
2 * USB 2.0(R)
2 * USB 3.2 Gen1(R)		 - 1 * HDMI
1 * DP		 2 * M.2 2280 Type M
1 * M.2 2230 Type A,E
Shuttle
SW580R8		 Intel® 10th/11th generation Core™
i3/i5/i7, Pentium®
Celeron N5105
Celeron®125W LGA1200 CPU
Intel® Xeon® W-1000 series 125W CPU		 Intel W580 1 * Gigabit LAN
3 * USB 3.2 Gen1(F)
1 * USB 3.2 Gen1-C(F)
4 * USB 2.0(R)
4 * USB 3.2 Gen2(R)		 - 1 * HDMI
2 * DP		 2 * M.2 2280 Type M
1 * M.2 2230 Type E
Shuttle
SH510R4		 Intel® 10th/11th generation Core™
i3/i5/i7, Pentium
Celeron®125W LGA1200		 Intel H510 1 * LAN
4 * USB 2.0(R)
2 * USB 3.2 Gen1(R)		 - 1 * HDMI
1 * DP		 PCI-E X16 Gen4.0 slot
PCI-E X1 Gen3 slot
M.2 2280 Type M
M.2 2230 Type E
Shuttle
DH32U		 Tiger lake-U Pentium 7505
i3 1115G4
i5 1135G7
i7 1165G7		 - 2 * Gigabit LAN
4 * USB 3.2 Gen2(F)
4 * USB 3.2 Gen1(R)		 - 4 * HDMI 1 * M.2 2280 Type M
1 * M.2 2230 Type E
Shuttle
DL20N		 Jasper Lake 10W CPU
Celeron N4505
Celeron N5105
Pentium N6005		 - 2 * Gigabit LAN
2 * USB 3.2 Gen2(F)
2 * USB 2.0(R)
2 * USB 3.2 Gen1(R)
2 * USB 3.2 Gen2(R)		 - 1 * HDMI
1 * DP		 1 * M.2 2280 Type M
1 * M.2 2230 Type E
Shuttle
DS20U		 Celeron 5205U
i3-10110U
i5-10210U
i7-10510U		 - 2 * RJ45 LAN
2 * USB 3.2 Gen2 (F)
4 * USB2.0(F)
2 * USB 3.2 Gen2(R)		 - 1 * HDMI
1 * DP
1 * VGA video outputs		 2 * M.2 2280 Type M
1 * M.2 2230 Type E
Shuttle
EN01E		 EN01J3 Celeron
EN01J4 Pentium
EN01E Atom		 Integrated
in CPU		 2 * USB3.2 Gen 1(R)
1 * USB 2.0(R)		 - 1 * HDMI 1 * M.2 3042 B key
1 * Nano Slim slot
Shuttle
SH370R8		 Intel 8th/9th
i3/i5/i7/i9
Pentium,Celeron		 H370 1 * LAN
2 * USB3.1 Gen1(F)
2 * USB2.0(R)
2 * USB3.1 Gen1(R)
4 * USB3.1 Gen2(R)		 1 * M.2 2280 Type M key socket
1 * M.2 2230 Type E key socket		 1 * HDMI
2 * DP		 -
Shuttle
SH370R6V2		 Intel 8th/9th
i3/i5/i7/i9
Pentium,Celeron		 H370 1 * LAN
2 * USB2.0(F)
2 * USB3.1 Gen1(F)
2 * USB2.0(R)
2 * USB3.1 Gen1(R)
4 * USB3.1 Gen2(R)		 1 * M.2 2280 Type M key socket
1 * M.2 2230 Type E key socket		 1 * HDMI
2 * DP		 -
Shuttle
SZ270R9		 i3/i5/i7 Z270 2 * LAN
2 * USB3.0(F)
4 * USB2.0(R)
4 * USB3.0(R)		 2 * M.2 2280 Type M
1 * M.2 2230 Type A, E		 1 * HDMI
2 * DP		 -
Shuttle
SZ270R8		 i3/i5/i7 Z270 2 * LAN
2 * USB3.0(F)
4 * USB2.0(R)
4 * USB3.0(R)		 2 * M.2 2280 Type M
1 * M.2 2230 Type A, E		 1 * HDMI
2 * DP		 -
Shuttle
X50V7		 Intel Whiskeylake-U Celeron 4205U15W CPU
i3-8145U(optional)		 - 1 * Gigabit LAN
2 * USB2.0(R)
2 * USB3.1Gen2(R)
2 * USB3.1Gen1(L)		 1 * M.2 2280 Type B,M key socket
1 * M.2 2230 Type A,E key socket		 1 * HDMI -
Shuttle
SH570R8		 Intel 10/11th H570 2 * Gigabit LAN
3 * USB3.2 Gen1(F)
1 * USB3.2 Gen1-C(F)
4 * USB2.0(R)
4 * USB3.2Gen2(R)		 1 * RS232
1 * M.2 2280 Type M key socket
1 * M.2 2230 Type E key socket		 1 * HDMI
2 * DP		 -
Shuttle
SH570R6		 Intel 10/11th H570 2 * Gigabit LAN
3 * USB3.2 Gen1(F)
4 * USB3.2 Gen1-C(F)
4 * USB2.0(R)
4 * USB3.2 Gen2(R)		 1 * RS232
1 * M.2 2280 Type M key socket
1 * M.2 2230 Type E key socket		 1 * HDMI
2 * DP		 -
Shuttle
DH410		 Intel 10th H410 2 * Gigabit LAN
2 * USB3.2 Gen2(F)
4 * USB2.0(F)
2 * USB3.2 Gen2(R)		 1 * RS232
1 * RS232/RS422/RS485
1 * M.2 2280
1 * M.2 2230		 1 * HDMI
1 * DP		 -
Shuttle
Digital Signage

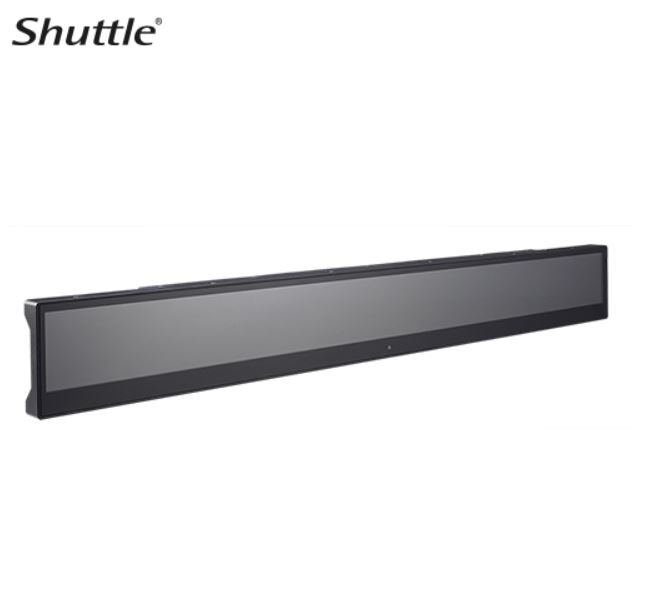

D230		 - - 1 * USB2.0 - 23.1” LCD (1920x158),400nits -
Shuttle
All-in-one

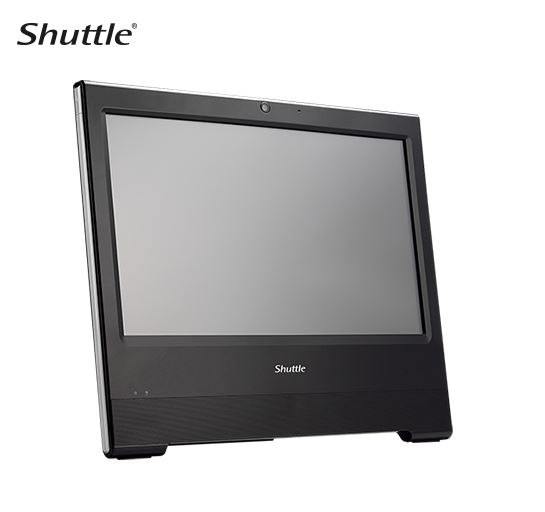

P90U		 Intel Kabylake-U Celeron 3865U 15W CPU i3-7100U/i5-7200U (optional) - 1 * LAN
2 * USB2.0(R)
2 * USB3.0(R)
2 * USB2.0(LEFT)		 1 * 2.5 1 * HDMI
1 * DP		 M.2 2280 Type B,M key socket
M.2 2230 Type A,E Key socket
Shuttle
NC10U		 Intel WhiskeyLake-U Celeron 4205U 15W CPU i3-8145U, i5-8265U, i7-8565U (optional) - 1 * RJ45 LAN
1 * USB 3.1 Gen 1 Type A(F)
1 * USB 3.1 Gen 1 Type C(F)
2 * USB 2.0(R)		 1 * RS232
1 * M.2 2280 M key
1 * M.2 2230 E key		 1 * HDMI
1 * DP		 -
Shuttle
DS10U		 Intel Whiskey Lake-U Celeron 4205U 15W CPU i3-8145U, i5-8265U, i7-8565U (optional) - 2 * Gigabit LAN
2 * USB3.1 Gen2(F)
4 * USB2.0(F)
2 * USB3.1 Gen2(R)		 1 * RS232/RS422/RS485
1 * M.2 2280
1 * M.2 2230		 1 * HDMI
1 * DP		 -
Shuttle
XH310R
XH310RV		 Intel® 8th/9th Generation Core™ i3/i5/i7, Pentium®, Celeron® LGA1151v2 CPU max. TDP 65W Intel H310 2 * Gigabit LAN
2 * USB2.0(F)
2 * USB2.0(R)
2 * USB3.1(F)
2 * USB3.1(R)		 1 * RS232
1 * RS232/RS422/RS485
1 * M.2 2280
1 * M.2 2230		 1 * HDMI
1 * DP		 RS232*3
WIFI
Shuttle
DH470		 Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor Intel H470 2 * Gigabit LAN
2 * USB3.2 Gen1(F)
2 * USB3.2 Gen1(R)
2 * USB3.2 Gen2(R)		 1 * RS232
1 * RS232/RS422/RS485
1 * M.2 2280
1 * M.2 2230		 1 * HDMI
2 * DP		 WIFI
VGA PORT
Shuttle
XH410G		 Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor Intel H410 1 * Gigabit LAN
2 * USB2.0(F)
2 * USB2.0(R)
2 * USB3.2(F)
2 * USB3.2(R)		 1 * M.2 2280
1 * M.2 2230		 1 * HDMI Single PXIE X16(GPU)
WIFI
